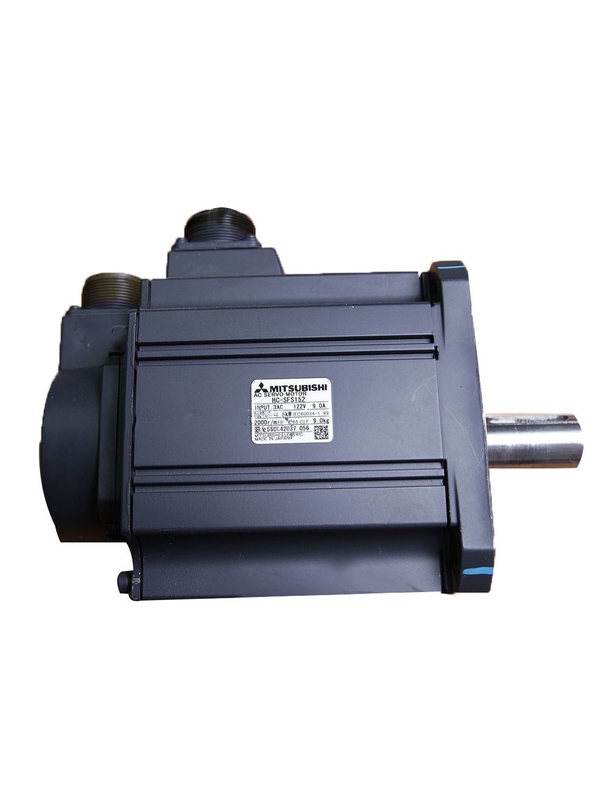

De Servomotor van Mitsubishi
>
|
| Plaats van herkomst | China/JAPAN |
| Merknaam | MITSUBISHI, MITSUBISHI |
| Certificering | CE |

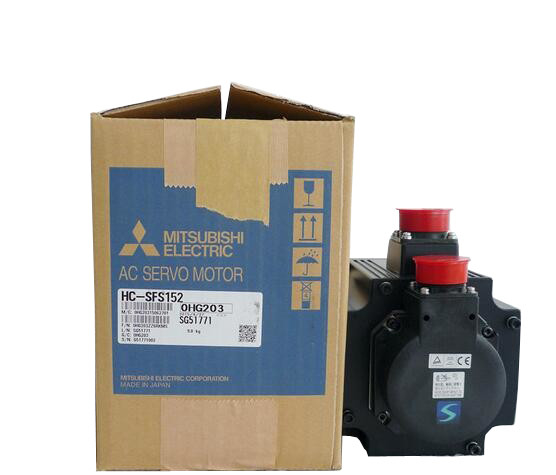

| Modelnummer | Hc-SFS152 |
De Reeks van HC SFS
Eigenschappen:
De middelgrote inertie Drie modellen, van laag aan hoge snelheid, is beschikbaar voor diverse toepassingen
Toepassingsvoorbeelden:
●De Robots● X-Y lijsten van materiële behandelingssystemen ●
| Servomotormodel |
Hc-SFS 52 (b) |
Hc-SFS 102 (b) |
Hc-SFS 152 (b) |
Hc-SFS 202 (b) |
Hc-SFS 352 (b) |
Hc-SFS 502 (b) |
Hc-SFS 702 (b) |
| Servoversterkermodel | M.-j2s-60A/B | M.-j2s-100A/B | M.-j2s-200A/B | M.-j2s-200AB | M.-j2s-350A/B | M.-j2s-500A/B | M.-j2s-700A/B |
| De capaciteit van de machtsfaciliteit |
1.0 [kVA] |
1.7 [kVA] |
2.5 [kVA] |
3.5 [kVA] |
5.5 [kVA] |
7.5 [kVA] |
10 [kVA] |
| Nominaal vermogen |
0,5 [KW] |
1.0 [KW] |
1.5 [KW] |
2.0 [KW] |
3.5 [KW] |
5.0 [KW] |
7.0 [KW] |
| Geschatte torsie |
2.39 [NM] |
4.78 [NM] |
7.16 [NM] |
9.55 [NM] |
16.7 [NM] |
23.9 [NM] |
33.4 [NM] |
| Maximumkoppel |
7.16 [NM] |
14.4 [NM] |
21.6 [NM] |
28.5 [NM] |
50.1 [NM] |
71.6 [NM] |
100 [NM] |
| Geschatte omwentelingssnelheid | 2000 [t/min] | ||||||
| Maximumomwentelingssnelheid | 3000 [t/min] | 2500 [t/min] | 2000 [t/min] | ||||
| Toelaatbare onmiddellijke omwentelingssnelheid | 3450 | 2850 | 2300 | ||||
| Geschatte stroom [A] | 3.2 | 6 | 9 | 11 | 17 | 28 | 35 |
| Maximumstroom [A] | 9.6 | 18 | 27 | 33 | 51 | 84 | 105 |
| Gewicht | 5 [kg] | 7 [kg] | 9 [kg] | 12 [kg] | 19 [kg] | 23 [kg] | 32 [kg] |
