Plaats van herkomst:
Japan/China
Merknaam:
Mitsubishi
Modelnummer:
HF-SP352

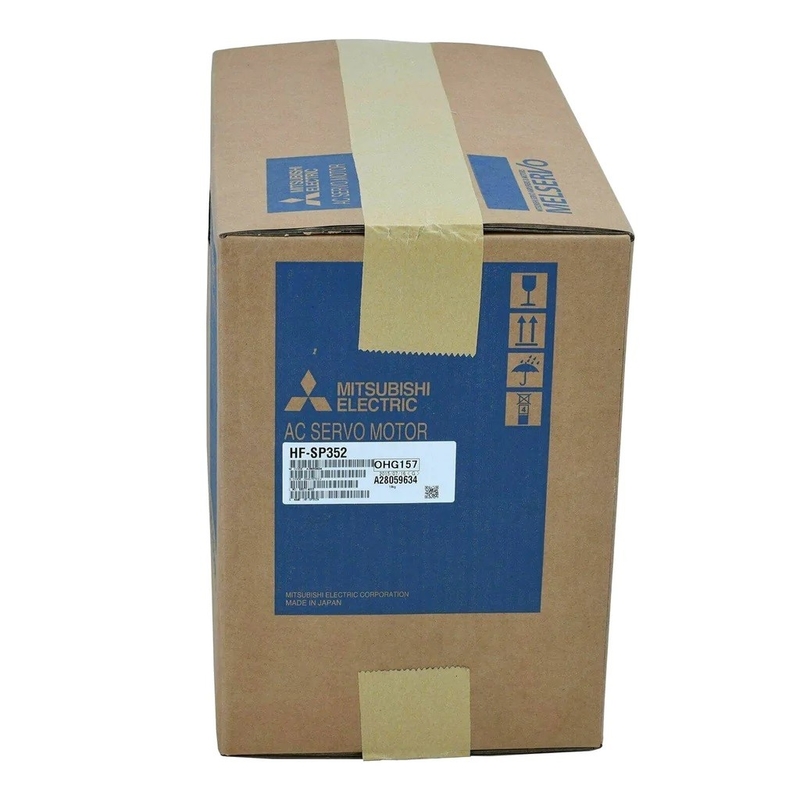

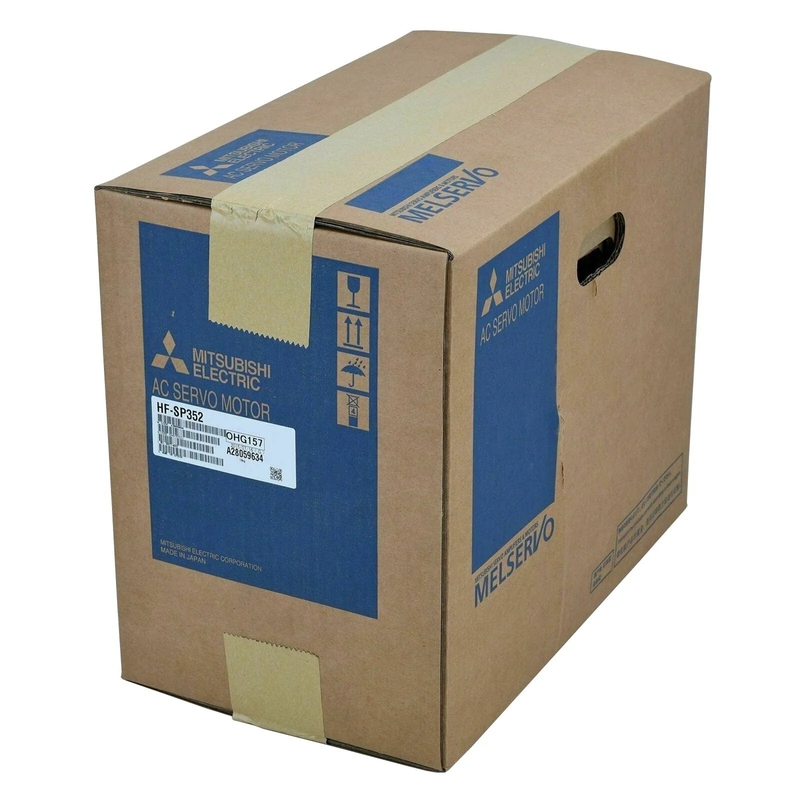

HF-SP352 AC Servomotor16a 3.5KW 16.7NM 2000r/min Nieuwe Voorraad
Eigenschappen:
*Absolute high-resolution codeur als standaardmateriaal
*Design voltooiing
*Mediuminertie
Specificaties:
| Servomotormodel |
HF-SP 52 (b) |
HF-SP 102 (b) |
HF-SP 152 (b) |
HF-SP 202 (b) |
HF-SP 352 (b) |
HF-SP 502 (b) |
HF-SP 702 (b) |
| Servoversterkermodel | M.-j3-60A/B/T | M.-j3-100A/B/T | M.-j3-200A/B/T | M.-j3-200A/B/T | M.-j3-350A/B/T | M.-j3-500A/B/T | M.-j3-700A/B/T |
| De capaciteit van de machtsfaciliteit |
1.0 [kVA] |
1.7 [kVA] | 2.5 [kVA] | 3.5 [kVA] | 5.5 [kVA] | 7.5 [kVA] | 10 [kVA] |
| Nominaal vermogen |
0,5 [KW] |
1.0 [kW] | 1.5 [kW] | 2.0 [kW] | 3.5 [kW] | 5.0 [kW] | 7.0 [kW] |
| Geschatte torsie |
2.39 [NM] |
4.77 [NM] | 7.16 [NM] | 9.55 [NM] | 16.7 [NM] | 23.9 [NM] | 33.4 [NM] |
| Maximumkoppel |
7.16 [NM] |
14.3 [NM] | 21.5 [NM] | 28.6 [NM] | 50.1 [NM] | 71.6 [NM] | 100 [NM] |
| Geschatte omwentelingssnelheid |
2000 [t/min] |
2000 [t/min] |
2000 [t/min] |
2000 [t/min] |
2000 [t/min] |
2000 [t/min] |
2000 [t/min] |
| Maximumomwentelingssnelheid |
3000 [t/min] |
3000 [t/min] |
3000 [t/min] |
3000 [t/min] |
3000 [t/min] |
3000 [t/min] |
3000 [t/min] |
| Toelaatbare onmiddellijke omwentelingssnelheid | 3450 | 3450 | 3450 | 3450 | 3450 | 3450 | 3450 |
| Machtstarief bij ononderbroken geschatte torsie |
9.34 kW/s |
19.2 [kW/s] |
28.8 [kW/s] |
23.8 [kW/s] |
37.2 [kW/s] |
58.8 [kW/s] |
72.5 [kW/s] |
| Geschatte stroom | 2.9A | 5.3 [A] | 8.0 [A] | 10 [A] | 16 [A] | 24 [A] | 33 [A] |
| Maximumstroom | 8.7A | 15.9 [A] | 24 [A] | 30 [A] | 48 [A] | 72 [A] | 99 [A] |
| Gewicht | 4.8kg | 6.5 [kg] | 8.3 [kg] | 12 [kg] | 19 [kg] | 22 [kg] | 32 [kg] |
